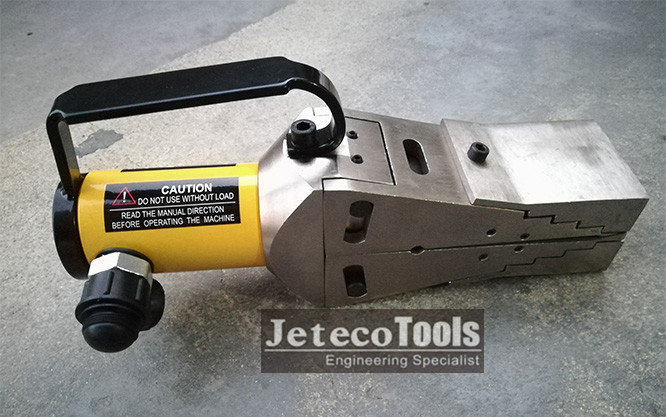

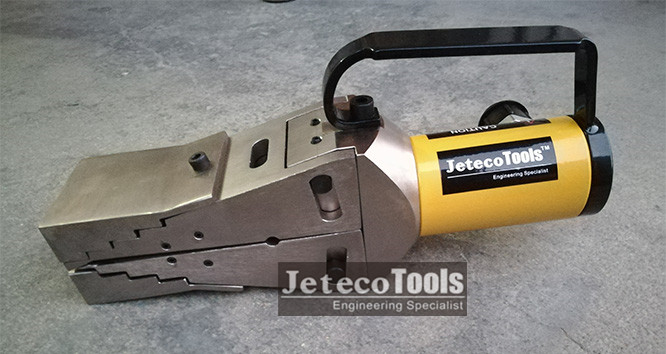

FSH-14 Hydraulic spreader

FSH-14 Hydraulic flange spreader, with safety wedge blocks, equal to Enerpac.

Tip clearance is 6mm.

Maximum spread is 80mm.

Maximum operating pressure is 700 bar.

Max spreading force is 125KN.

Weight 7.1kg.

For maintenance, commissioning, shutdowns, testing and valve change outs.

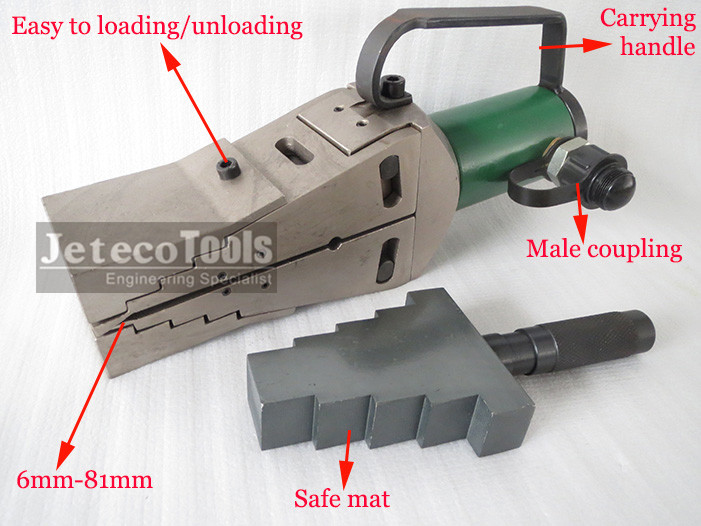

Intergrated wedge concept, frinction-free, smooth and parallel wedge movement eliminates flange damage and spreading arm failure.

Unique interlocking wedge design, no first step bending and risk of slipping out of joint.

Requires very small access gap of only 6mm.

Stepped spreader ram design, each step can spread under full load.

Few moving parts mean durability and low maintenance.

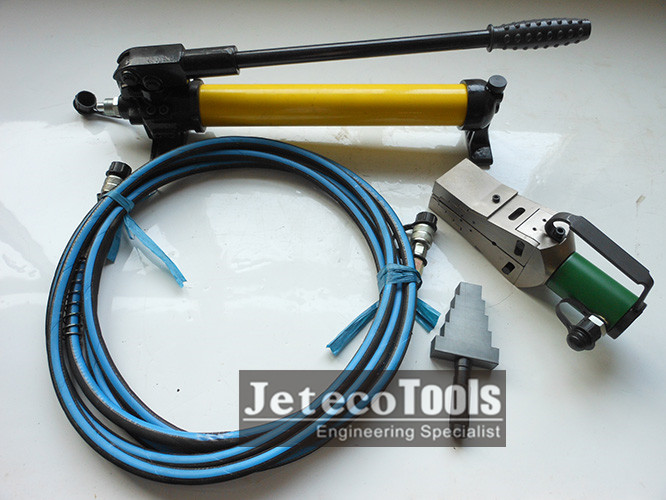

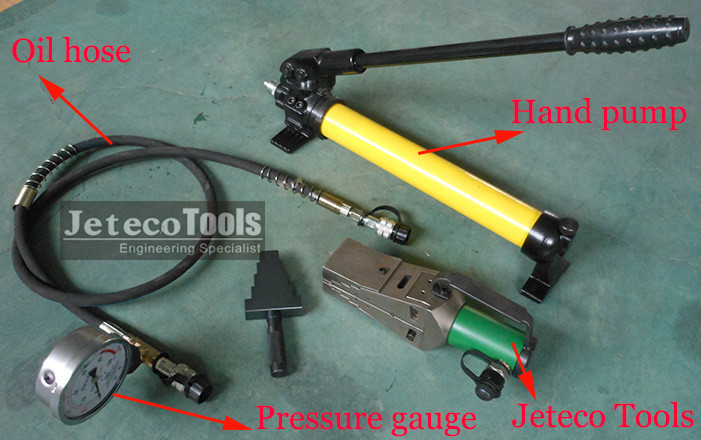

Can be operated by hydraulic hand pump.

The oil hose with 2M length, if possible need some a longer hydraulic oil tube, also can be OK.
