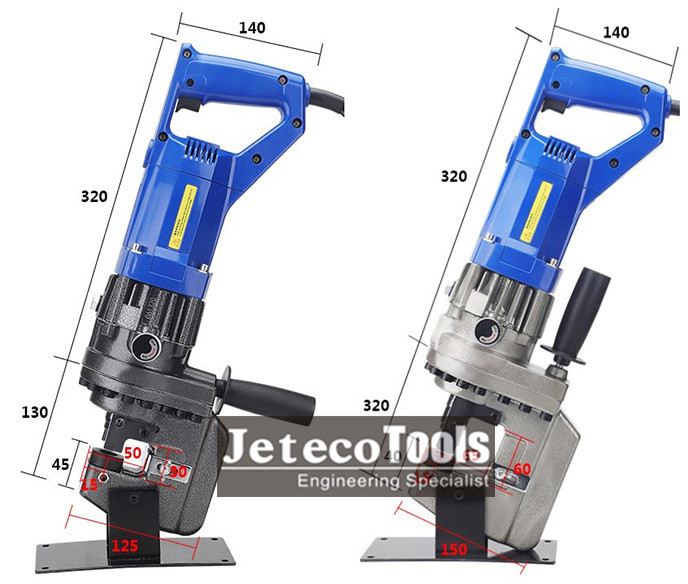

JP-20 electric hydraulic punch

JP-20 electric hydraulic hole puncher, driven by AC power supply, can be for AC 110V, 220V electric power.

With light weight, easy carrying.

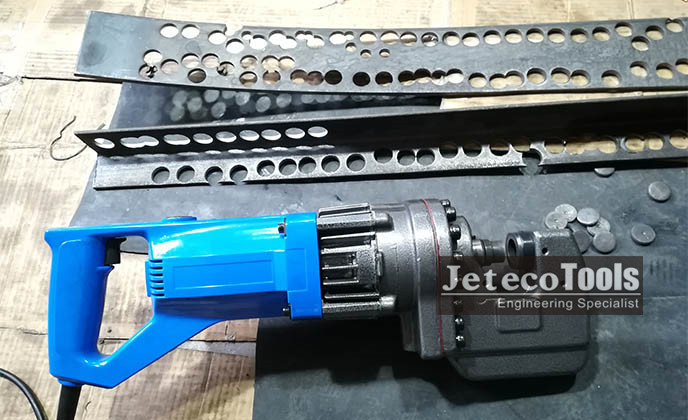

Suit for hole punching works in mild steel sheet, angle iron plate, copper, aluminum, channel steel, H steel, I beams and etc.

Standard 10 ton hydraulic hole punching.

AC electric power supply, can be 110V or 220V.

1200W of working rate.

Suitable for mild steel max up to 6mm thick, 8mm thickness for copper or aluminum.

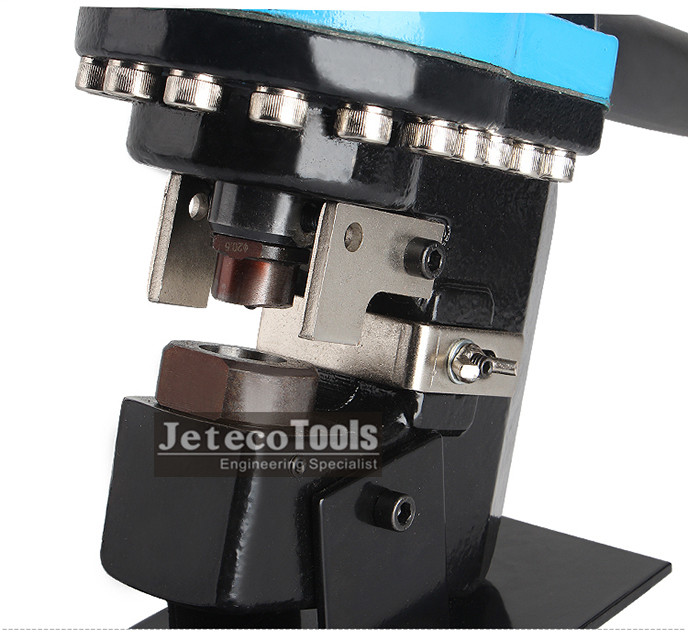

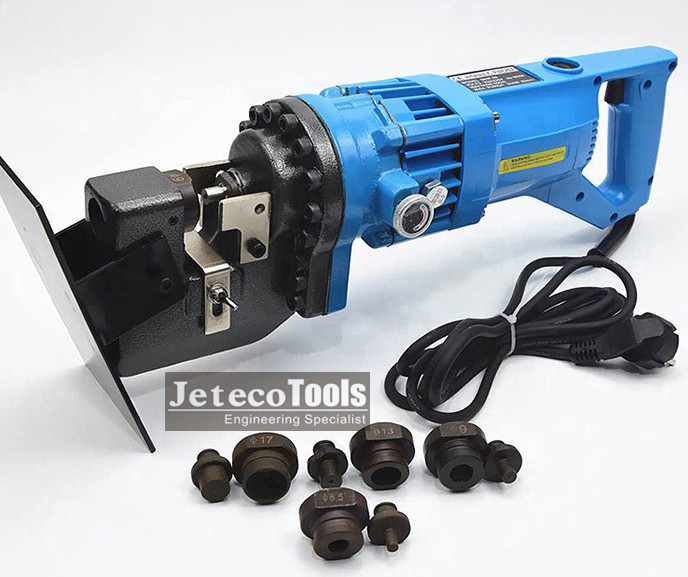

With round hole punches dies 6.5mm, 9mm, 13mm, 17mm, 20.5mm.

Other hole sizes are sell separately, such as 4.2mm, 4.5mm, 5mm, 5.5mm, 6mm, ..., 20.5mm.

Also can be oblong, square sizes hole punch dies, such 16mm*8mm.

We make the machine for 2 types of punching mouth.

Hole puncher net weight 12KG.

Portable electric hydraulic hole puncher machine, durable electric hydraulic working system.
