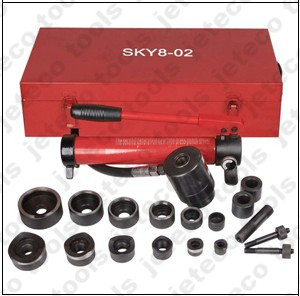

SYK8-02 Kit

SYK8-02 10 ton hydraulic knockout punch driver kit hole set with 6 dies by metal case, for max up to 11 gauge mild steel plate and 14 gauge stainless sheet.

Standard 6 sets of Dies & Punches, interchangeable.

Plastic handle sleeve at the end of the operating handle.

Rotatable ON / OFF Switch for pressure release.

Portable metal carrying case.

Two metal clasps to lock the kit firmly.

Portable, laborsaving and fast operation.

Suit for stainless steel, aluminum, mild steel, plastic etc.

Max pressure:10 ton

Max thickness for mild steel plate: 3.2 mm ( 11 gauge )

Max thickness for stainless steel sheet: 2 mm ( 14 gauge )

Ram with 31" high pressure oil hose

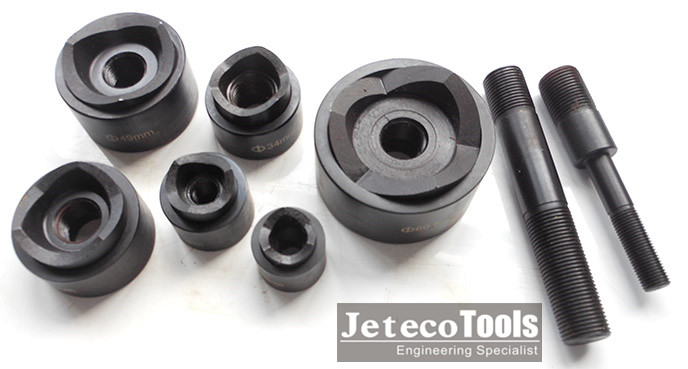

6 x dies & punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2". Or metric hole sizes by mm.

2 x draw studs: 3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam

Total Weight: 25 lbs

Actual hole sizes (0.885" (22.5mm), 1.115" (28.3mm), 1.362" (34.6mm), 1.701"(43.2mm), 1.951"(49.6mm), 2.416"(61.5mm))
Dies & punches sizes in inch (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")

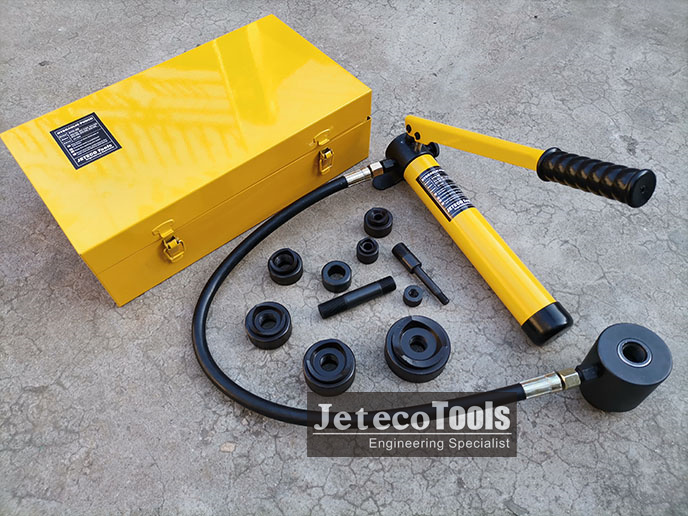

Package Content:
1 x 10-ton hydraulic hand punch pump
1 x hydraulic cylinder ram with hose
6 x dies & punches
2 x spacers
1 x piston shaft
2 x draw studs
1 x sturdy metal carrying case
1 x user manual

For different need, we can also make the tool kit with plastic box.
